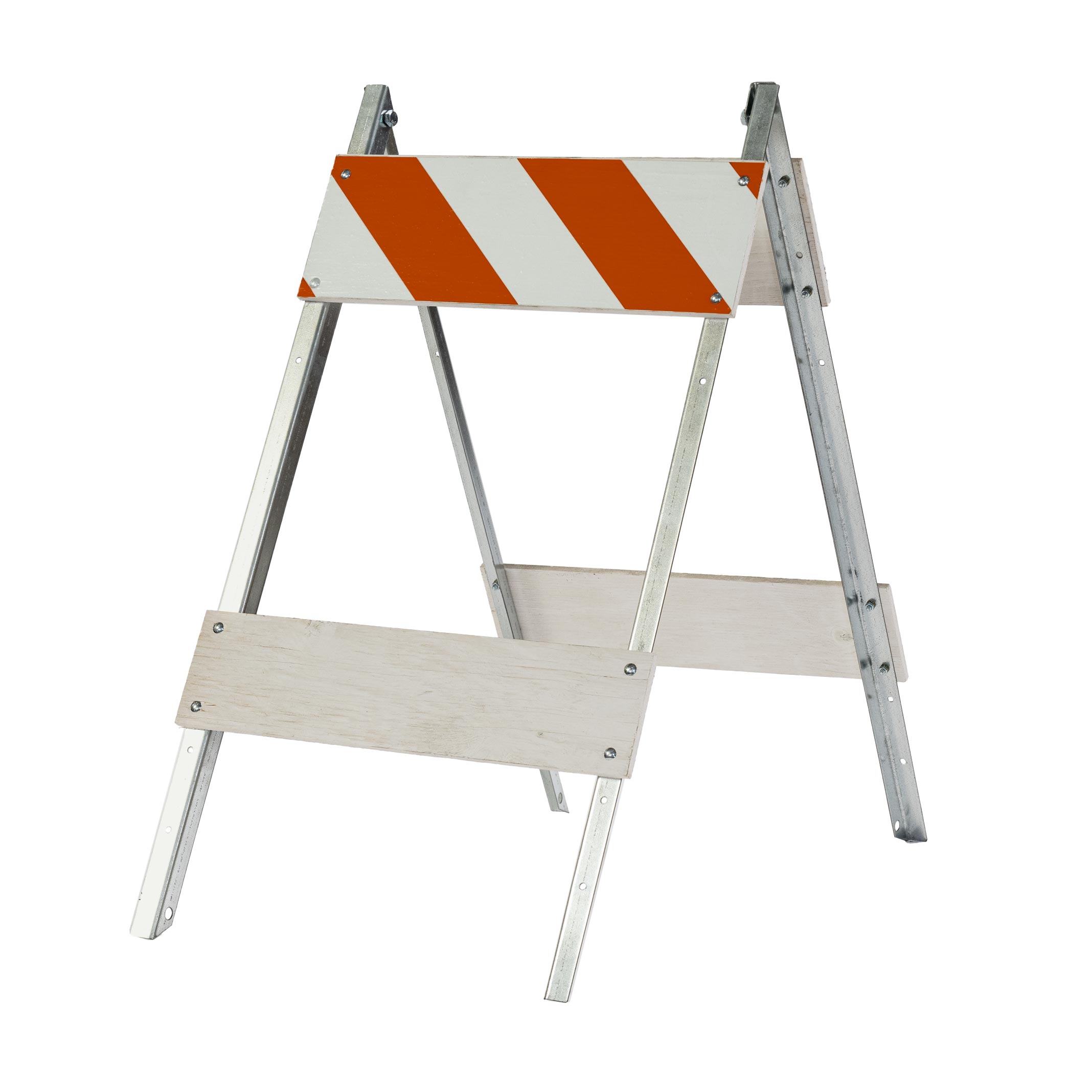

SKU: TD2300 TD2300 Type I & II Works Barricade – Plywood/Steel

Name: TD2300 Type I & II Works Barricade – Plywood/Steel
Brand: Three D Traffic Works
SKU: TD2300
Availability: InStock

Pallet Qty. 70 Units

The TD2300 Type I & II barricades can be purchase as assembled units or component parts. Legs and boards can be purchased separately. All components for this barricade are completely interchangeable. The TD2300 Works Barricades are currenly available in White. Three D Traffic Works can manufacture this product to your desired color.

Choose the following options for your quote:

Select Style:

Select Grade of Sheeting:

Stencil Set-Up Fee - One Time Charge

12 Gauge Steel Legs

Select Printing for Bottom Panel: None Stencil Bottom Panel - 1 Side Stencil Bottom Panel - 2 Side

Customize Your Order:

Qty

Add to job list

to access your Job Lists.

Board Length :	24", 32" and 36"
Board Material :	Plywood
Board Thickness :	1/2 "
Board Width :	Top Board: 8" or 12". Bottom Board: 4", 6", 8", or 12"
Folded Thickness :	1.81"
Height of Bottom Panel / Board of Roadway :	8.00" minimum
Height of Sheeting Above Roadway :	40.50"
Labels, Stenciling, Lettering, Stickers, Logos :	Available upon request
Legs Dimensions :	12 & 14 guage, 44.75 " length
Legs Material :	Galvanized Steel
Overall Height :	45.00"
Product Weight :	Type I Barricade with 14 Guage Steel Legs: 15.75 lbs
Reflective Sheeting :	Many options available
Type I :	YES
Type II :	YES
