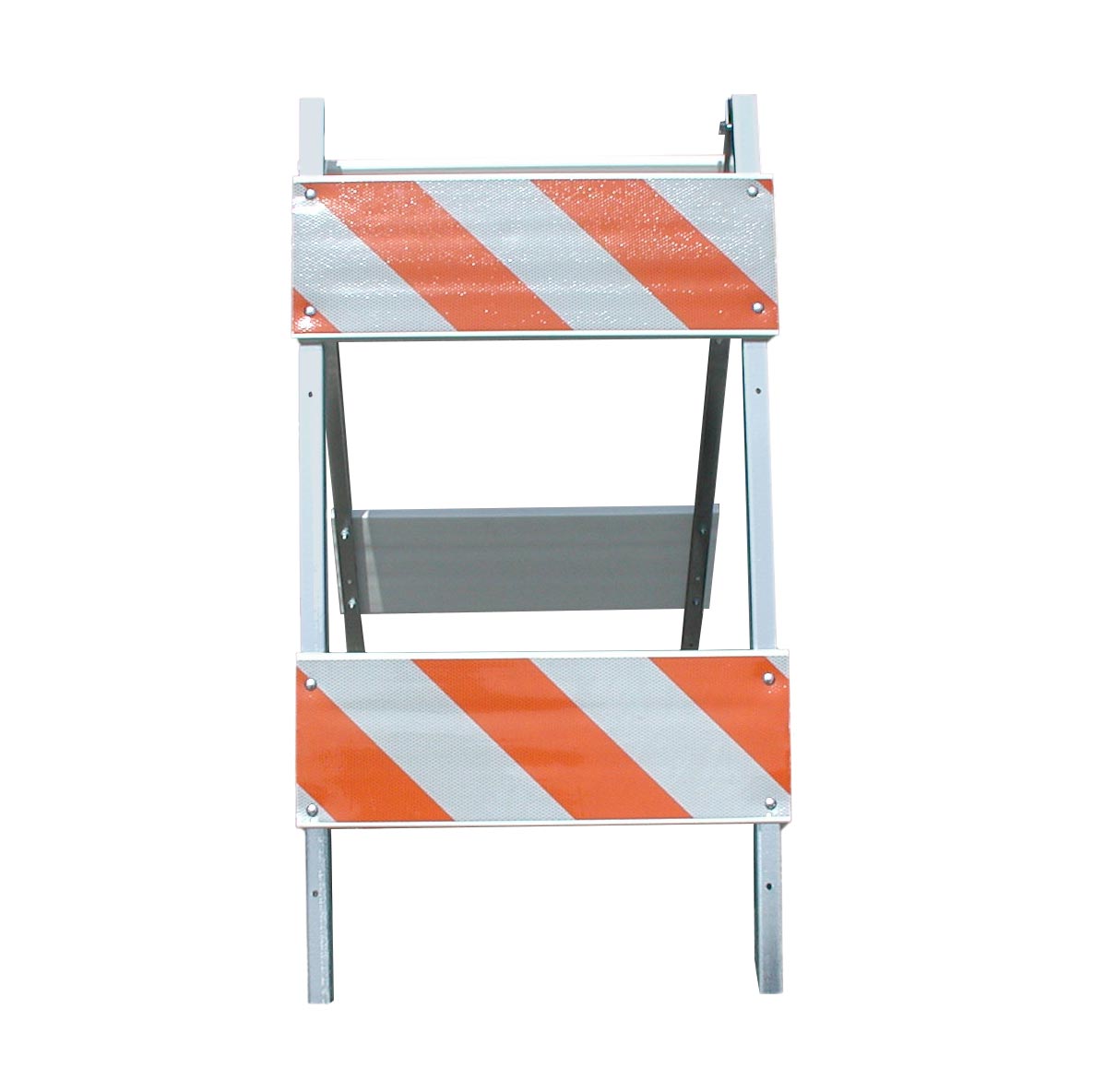

Thumbnail Filmstrip of TD2250 Type I & II Works Barricade – Extruded Plastic/Steel Images
COMPLIANCE
- NCHRP350 Approved: WZ-54
- MUTCD Compliant
- All sheeting complies with ASTM 4956 requirements
Product Features:
- High impact extruded plastic panels are reinforced to reduce bending and warping.
- Type I and Type II barricades can be purchase as assembled units or component parts.and Legs and boards can be purchased separately.and All components for this barricade are completely interchangeable.
- Legs are standard 45" and manufactured using galvanized steel in 12 and 14 gauge thickness.
- Steel legs can be painted white enamel upon request.
Product Specifications:
| Board Length : | 24.32" or 36.00" |
| Board Material : | UV Stabilized polymer with cold weather protection package |
| Board Thickness : | .85" |
| Board Width : | 8.00" |
| Folded Thickness : | 2.16" |
| Height of Bottom Panel / Board of Roadway : | 8.00" minimum |
| Height of Sheeting Above Roadway : | 40.50" |
| Height of Top Board Above the Roadway : | 40.50" |
| Labels, Stenciling, Lettering, Stickers, Logos : | Available upon request |
| Legs Dimensions : | 12 & 14 guage, 44.75 " length |
| Legs Material : | Galvanized Steel |
| Overall Height : | 45.00" |
| Reflective Sheeting : | Many options available |
| Type I : | YES |
| Type II : | YES |
Download PDFs:
Product Information Sheet
Approvals & Certifications
Stock Number PDFS
